Actual Usage and Applications
Prototype simulation test of SPRF/ Self Powered RF detection light monitor on HF-VHF-UHF-Microwave bands

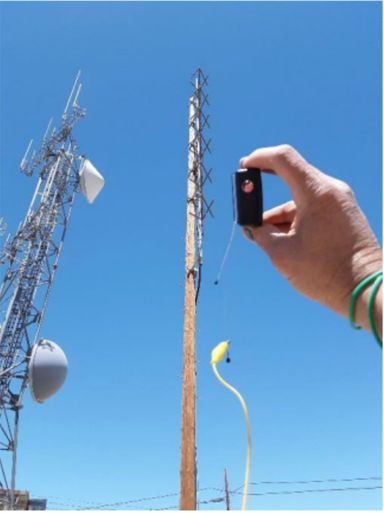

Approx 30 feet away from the antenna TX output is around 5kW> RF light + sound monitoring

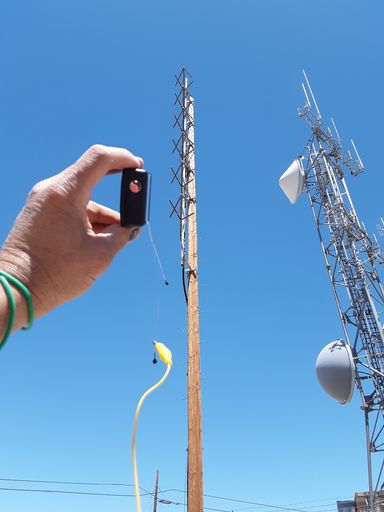

Monitoring an FM Broadcast antenna

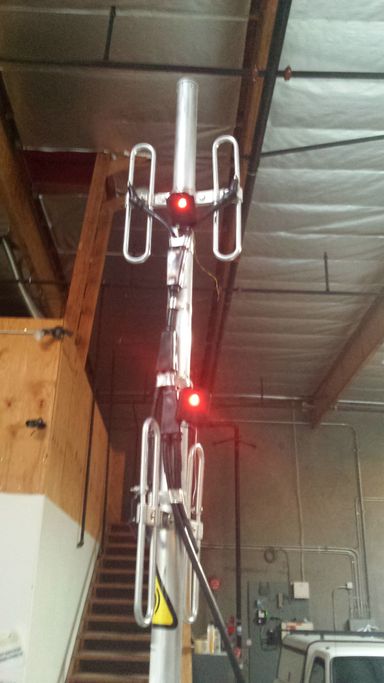

Base/repeater/ broadcast transmitters on FM or TV. Broadband RF monitoring light on HF-VHF-UHF up to 10kW
RF antenna beacon light

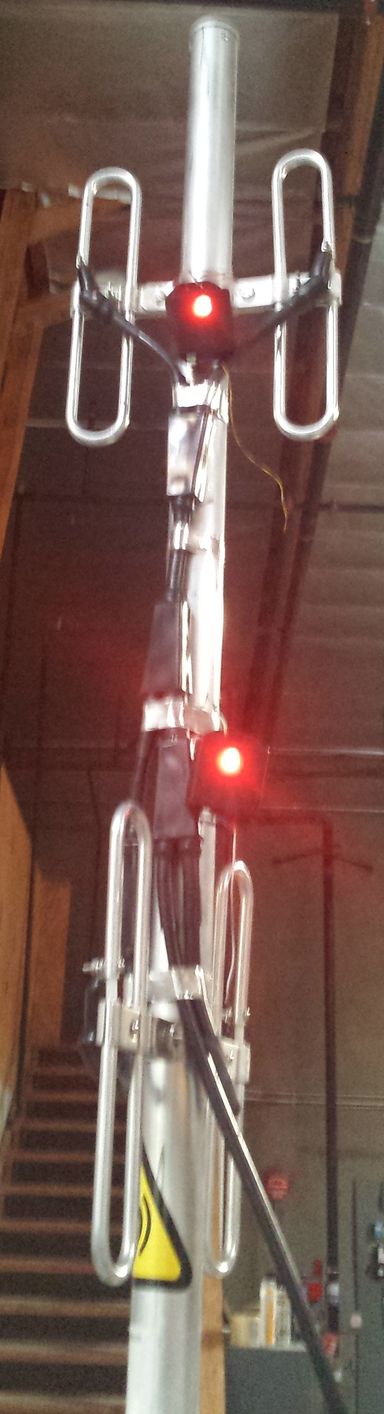

Base/repeater/ broadcast transmitters on FM or TV. Broadband RF monitoring light on HF-VHF-UHF up to 10kW
RF antenna beacon light
Versatile applications on any RF source. It's a tool of anyRF telecom techs and engineers

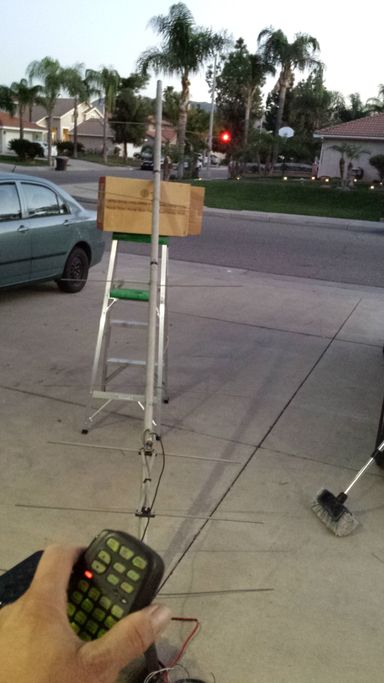

Radio transceiver RF tester
Broadband RF detection light on HF-VHF-UHF-microwave
Signalpen> Broadband RF light
Broadband RF detection light on HF-VHF-UHF-microwave

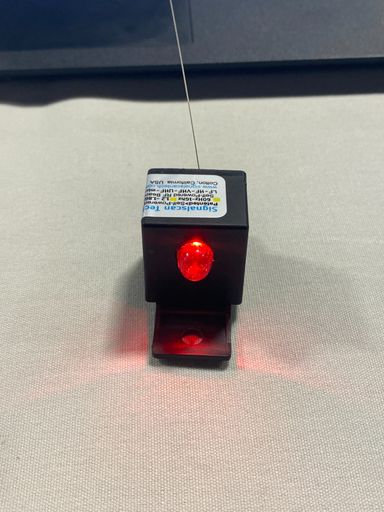

Signalcube> Broadband RF Detection light
Broadband RF detection light on HF-VHF-UHF-microwave
Signalsquare>RF detection light

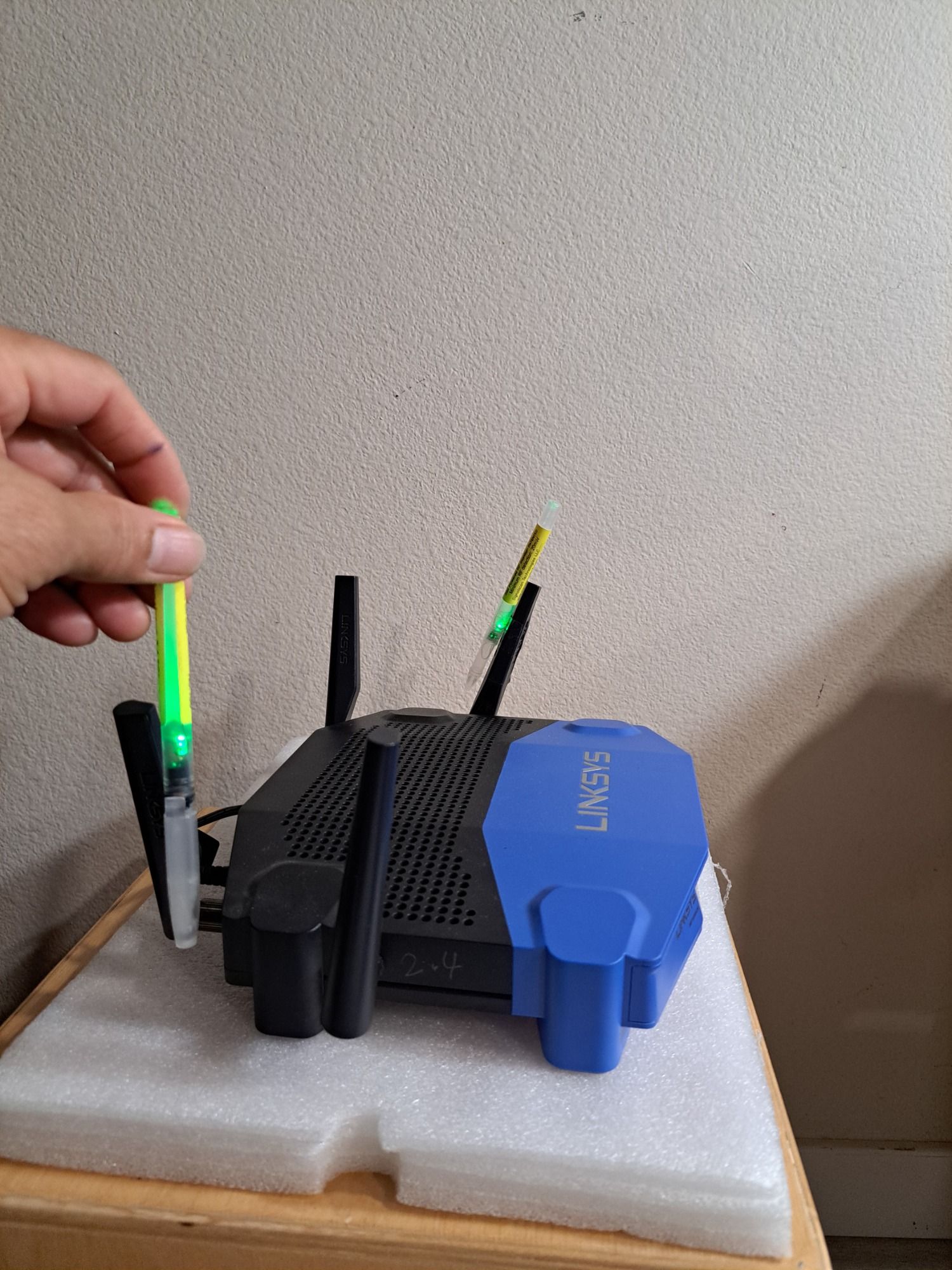

This is a broadband RF monitoring light for wi-fi routes and DAS system antennas.
Testing a 2.4 - 5Ghz wifi
Easy to locate a radio antenna. Techs and installers can easily locate or test a vehicle mounted radio antennas. HF-VHF-UHF & microwave band
Police/sheriff vehicle antenna locator

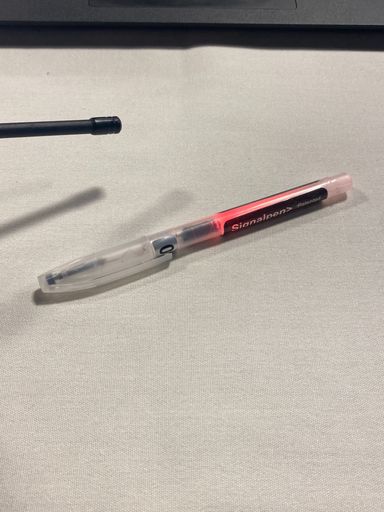

Signalpen> Quick & simple RF monitor. Straightforward no battery RF beacon light monitor
Signalpen> Quick & simple RF monitor
Airbus/Boeing blade antenna. SP-RF beacon light circuit integration for aircraft communication safety.
Patented Aircraft beacon light

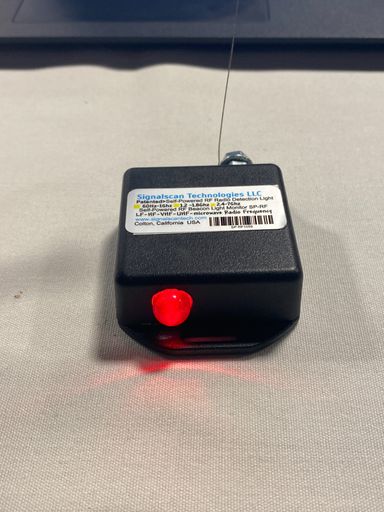

Signalsquare> RF beacon light Simple and straightforward RF beacon light monitor. Easy to use RF tool up to 5kW HF-VHF-UHF-wireless test.
Signalsquare> RF beacon light
Smart way to know your equipment is functional from the radio, coax cable, connector, antenna and repeater or simply if the system works.
VHF - UHF RF antenna beacon monitor
SPRF on 800Mhz- 1.2GHz- 2.4Ghz simulation test. SPRF circuit /internal and external detection. Cell site and DAS antenna testing/monitoring
Cellsite sector panel antenna test

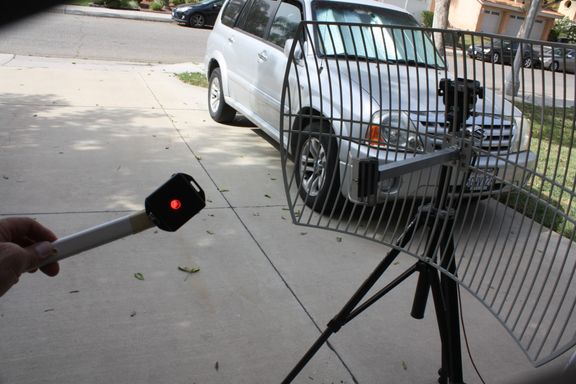

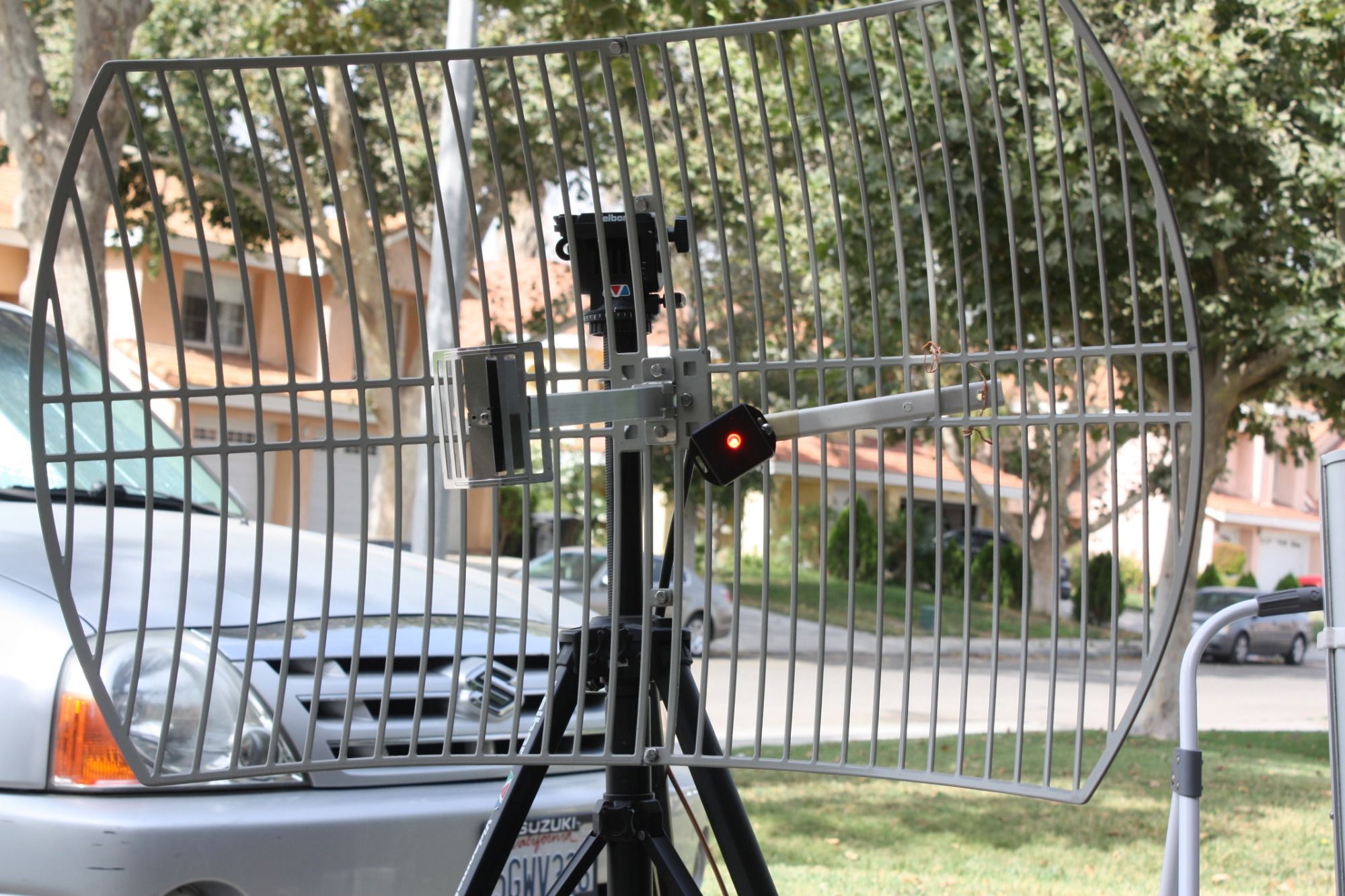

At near 3watts RF output using a video sender/transmitter, SPRF is lighted at 2-3feet distance from grid antenna, a good tool for quick test
2.4Ghz RF proximity monitor light test

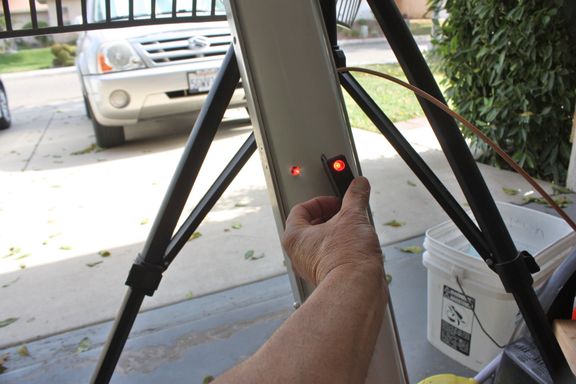

This is the same procedure with panel sector antenna simulation test. At 3 watts the SPRF works.
2.4Ghz microwave antenna test
