"First in the World"
Patented Broadband Self-Powered RADIO RF Detection Beacon Light
(No battery)
from
  SignalscanTechnologies

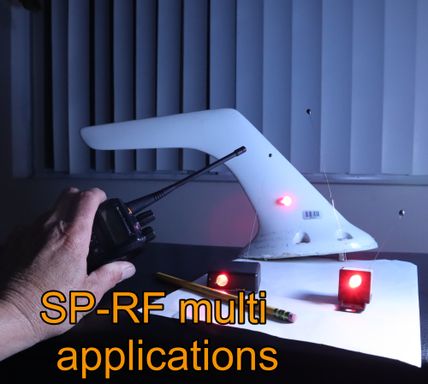

ACTUAL USAGE and APPLICATIONS


Click image for details

      Khz to Ghz / mW to kW Self - Powered RF Detection Light Monitor (no battery)

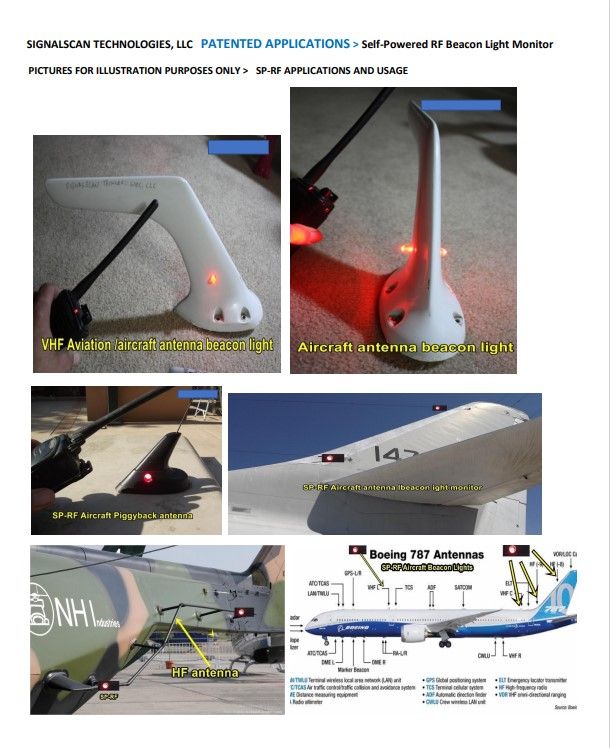

Patented applications for: Industrial / Military / Amateur Radio

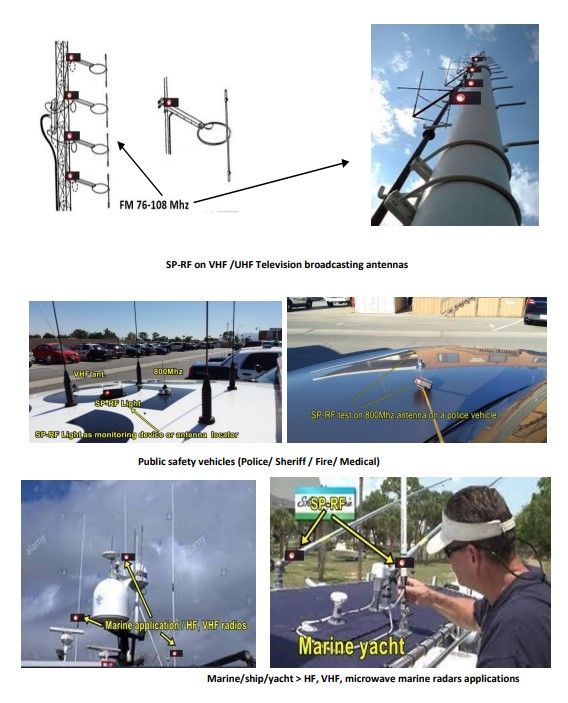

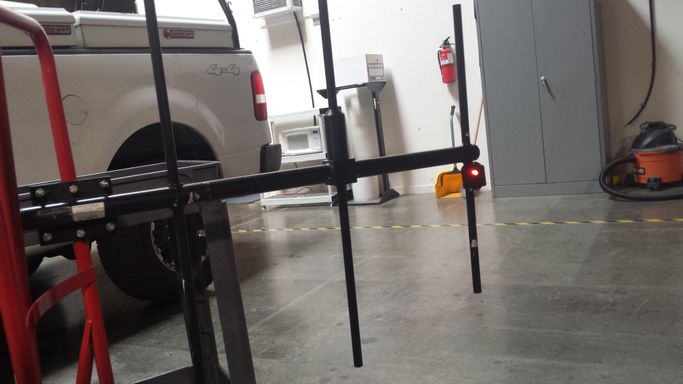

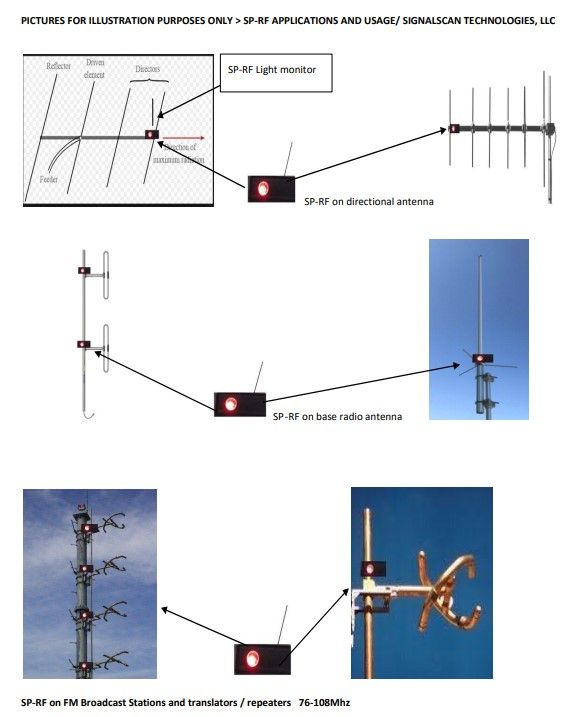

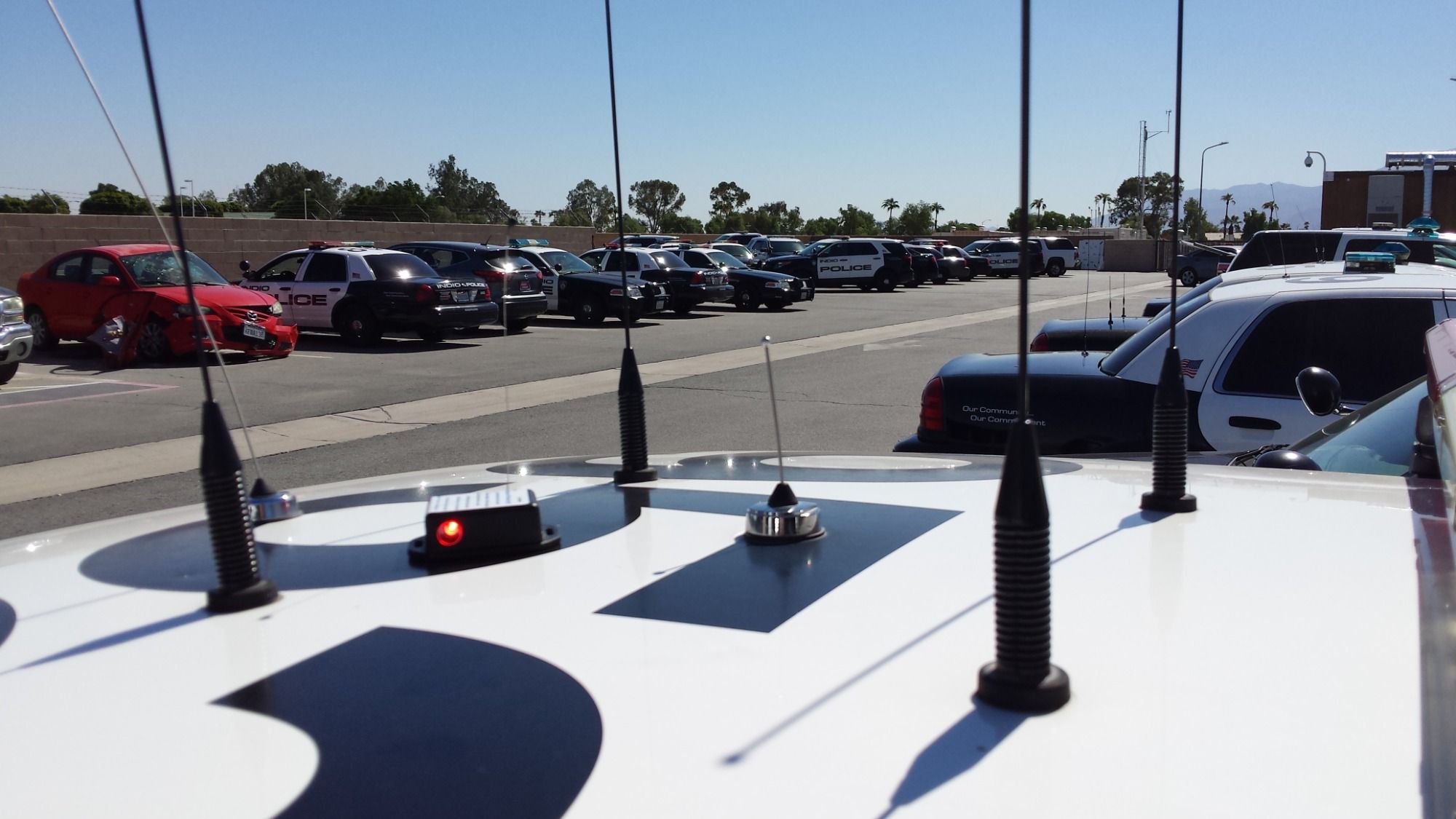

Self -Powered RF Beacon Light Monitor for Broadcast antenna
AM/FM/TV transmitters <> Celllular site antennas <> Radio repeater antenna
Aircraft antenna <> Marine antenna <> HF/VHF/UHF/Microwave bands

Contact Signalscan Technologies for Patent Licensing and Customized design

Now available at Palomar Engineers
www.palomar-engineers.com

Available Prototype Products for Sale

If you are interested in buying our products, click on the image and you will be sent to an order link. Free shipping for all items and will be sent within 1-2 weeks.

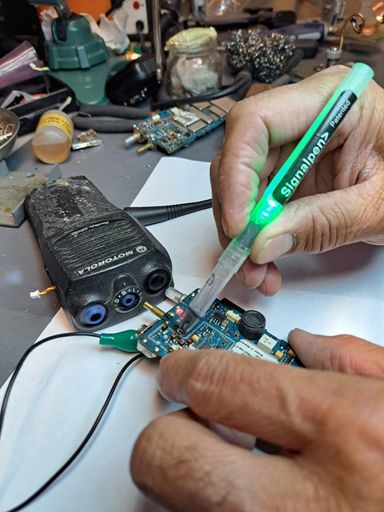

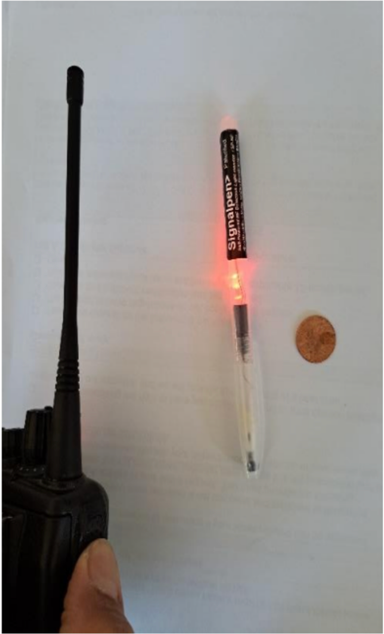

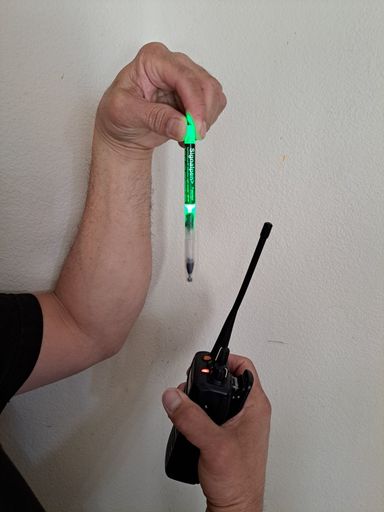

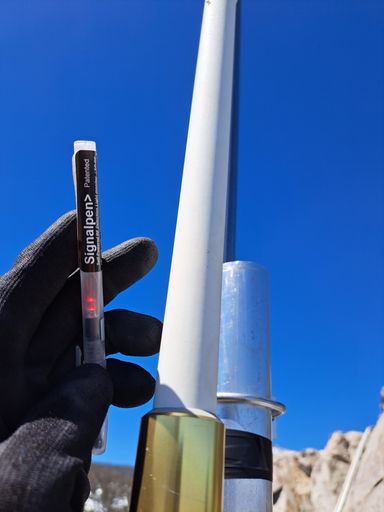

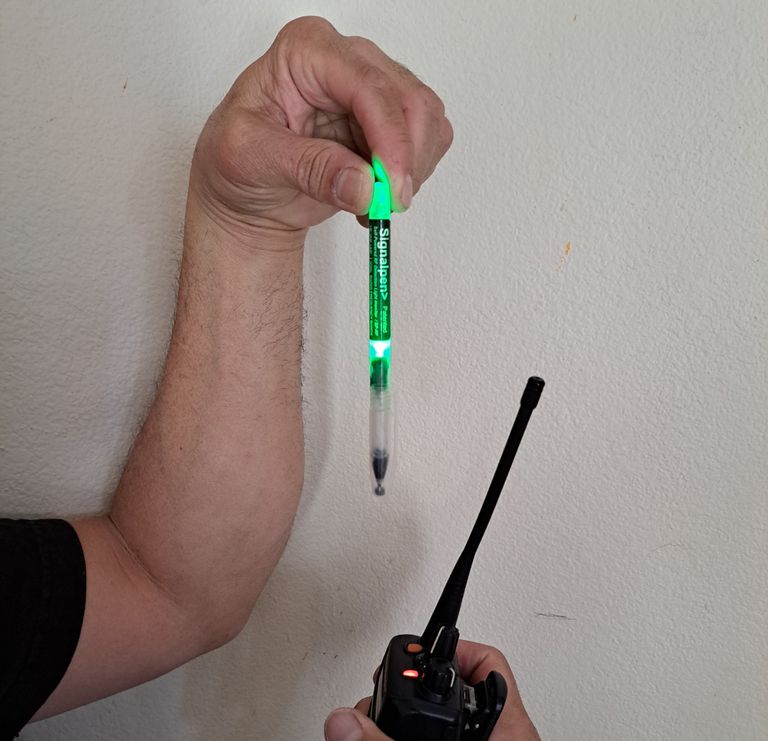

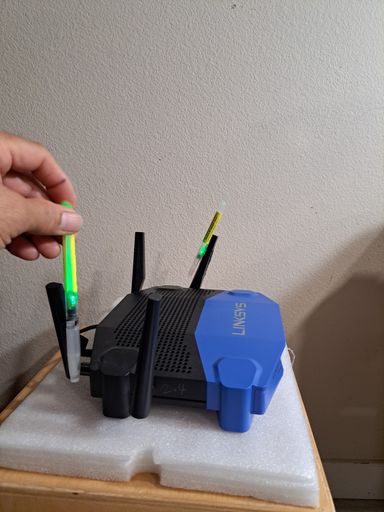

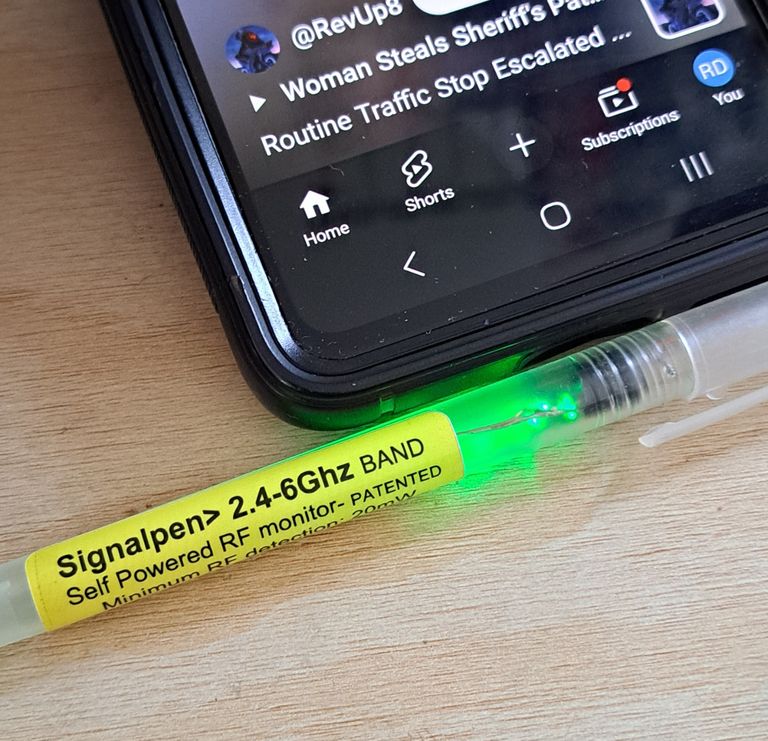

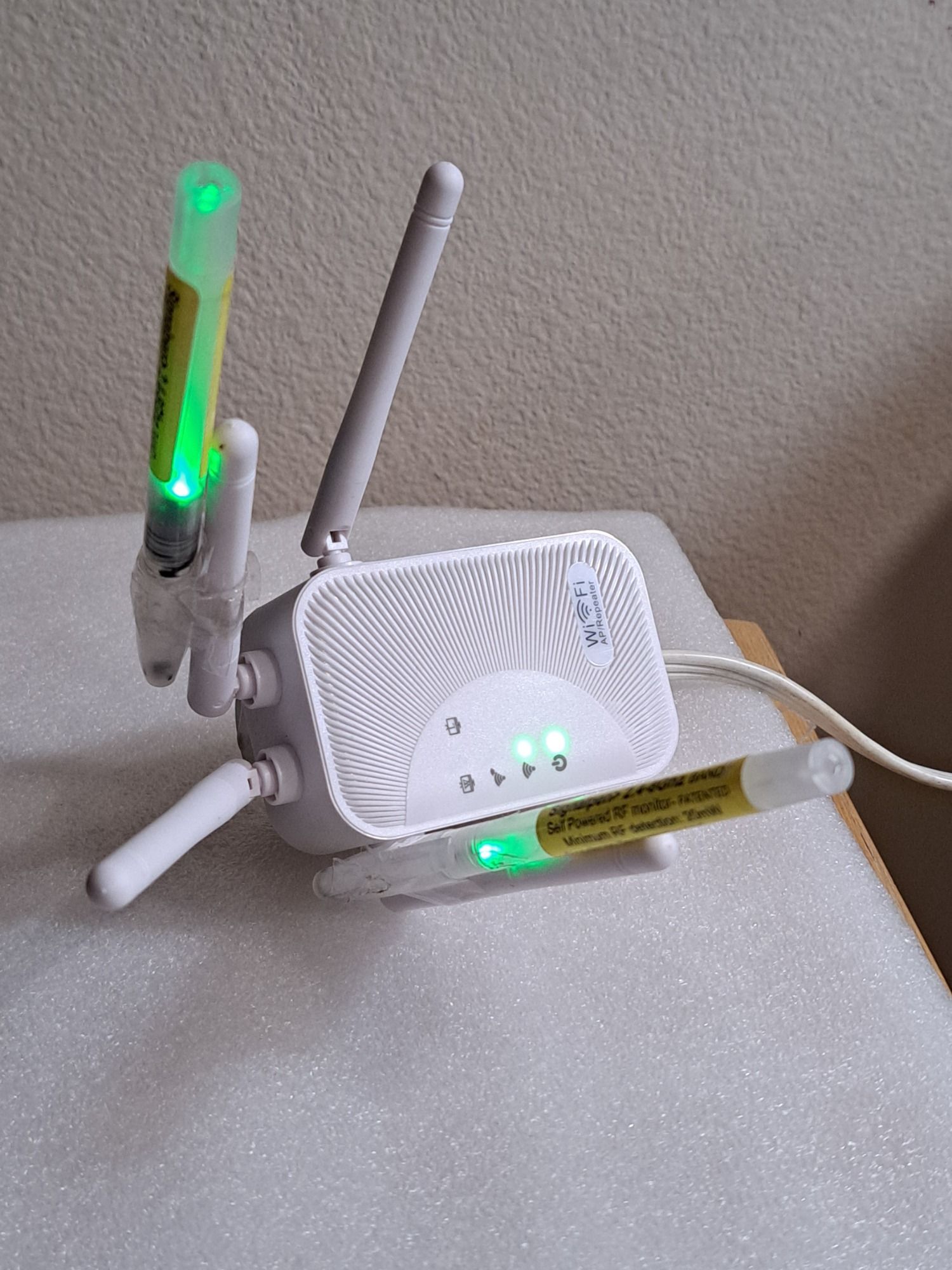

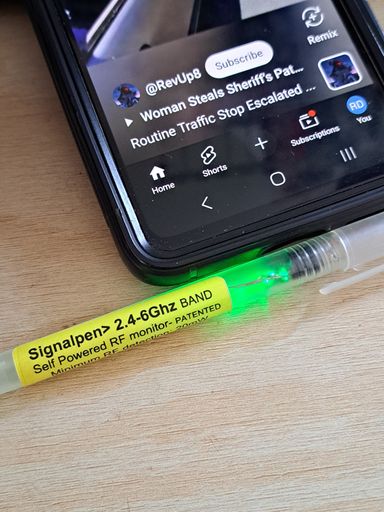

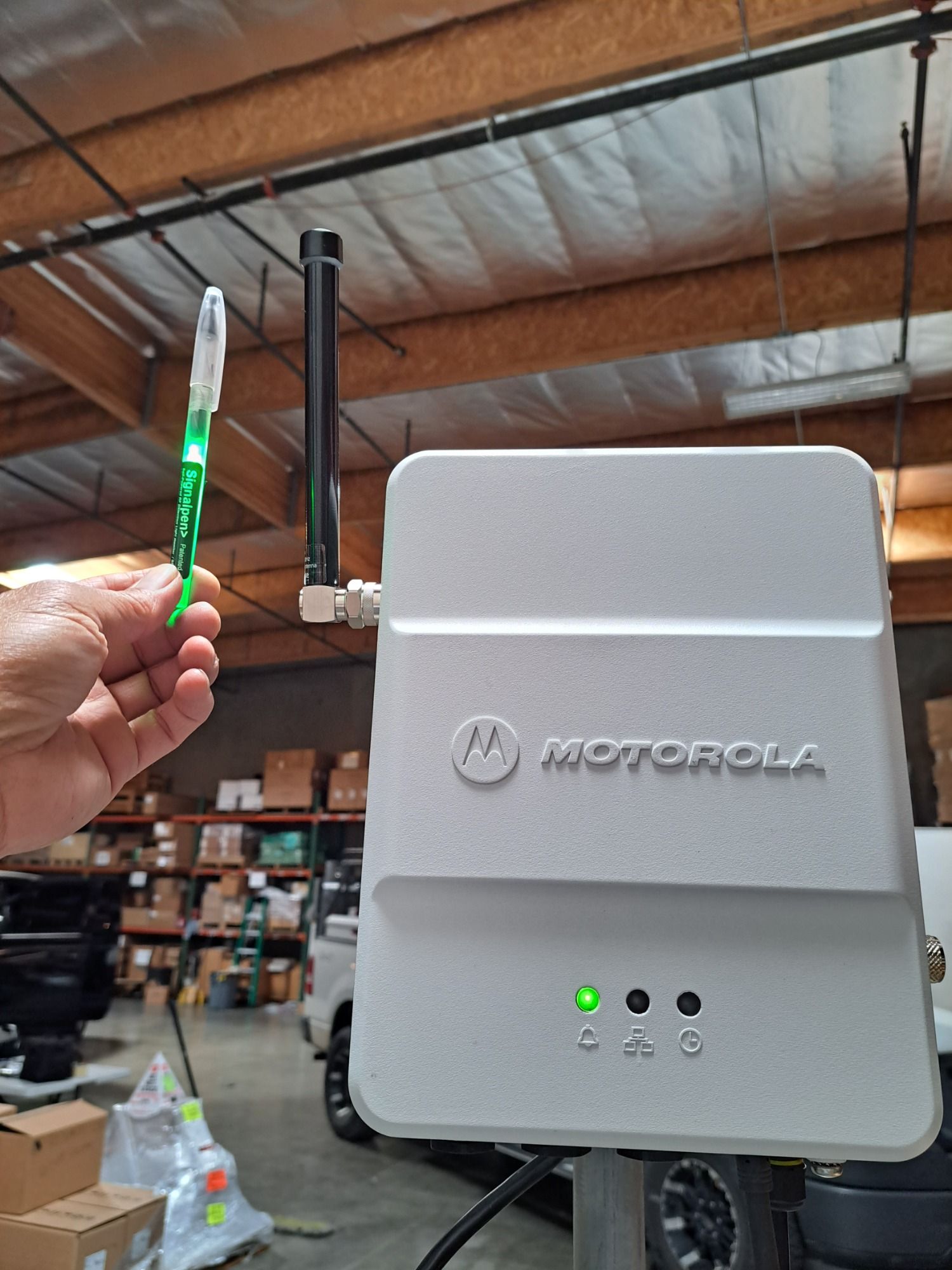

       SignalPen>    $49.95

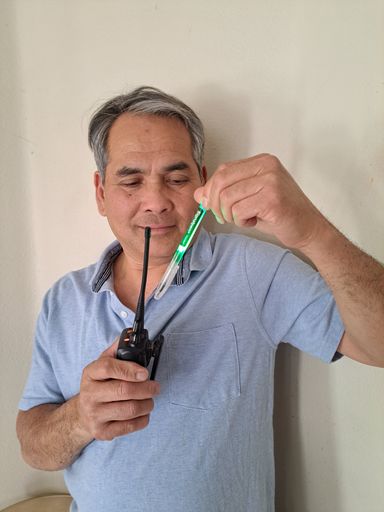

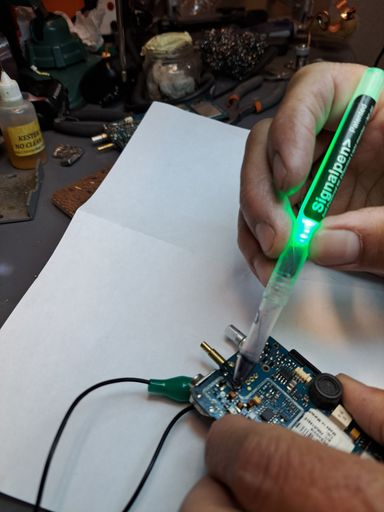

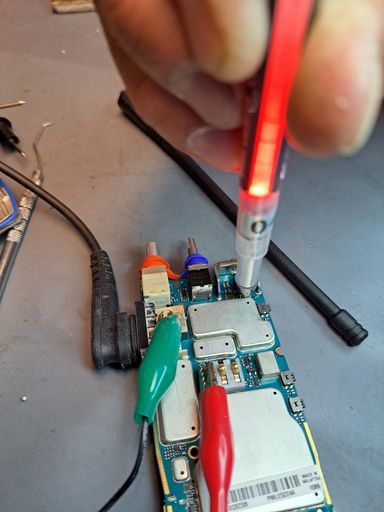

Our device, in the style of a pen without battery. A portable device that you hold at the end of the pen to detect any RF signal source in close proximity without a battery. It uses RF electromagnetic field as a power source to light up an indicating light. Simple tool/instrument to locate or troubleshoot any RF source from handheld transceiver, mobile radios, or base station and radio repeaters. This device also detects a high voltage AC power line from 15kV and above, also a handy tool for electrician.

Self-Powered RF Detection Light (No Battery Needed)

Product Dimensions

  • The size of a pen

Specifications

  • Hz to GHz: 60 Hz to 1.2 GHz
    • For Optional Models:

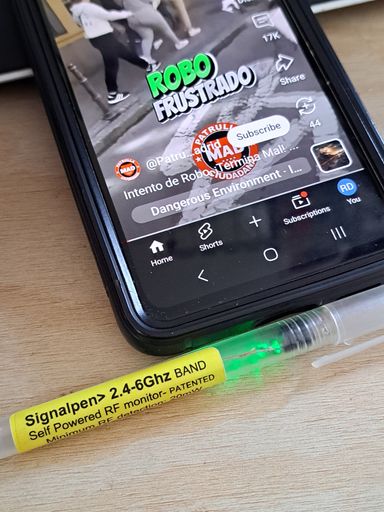

      • 2.4 to 6 Ghz
  • Min. to Max. RF Powered Detection: Milliwatt to Kilowatts
  • Proximity Detection:
    • Wireless: 0.5 in to 3 ft
    • Capable of in-circuit detection from 20mW. 30 seconds at 100 W

Warranty

  • 3 years warranty no matter what, except:
    • Intentional breakage and tampering of device.

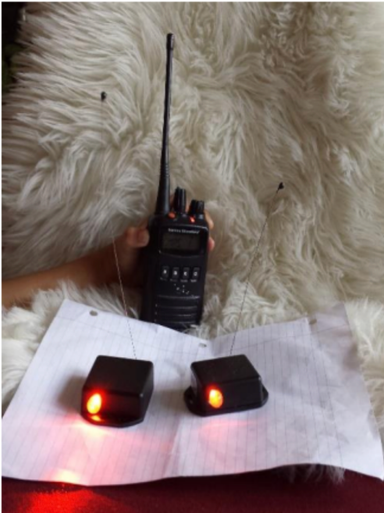

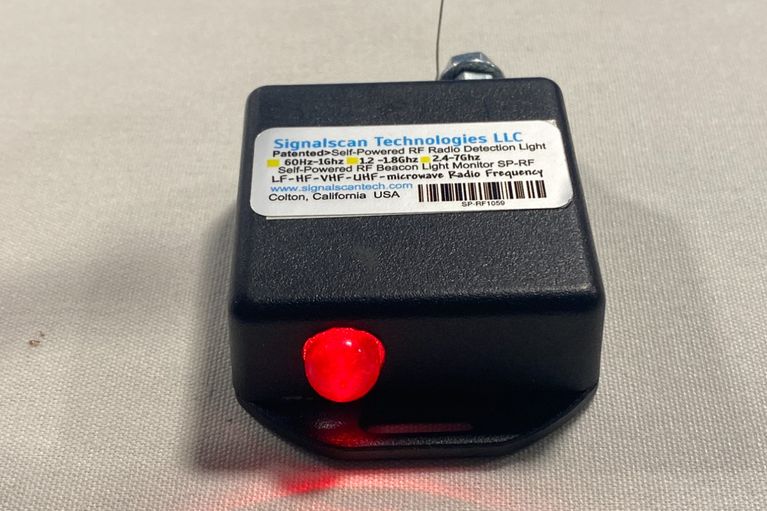

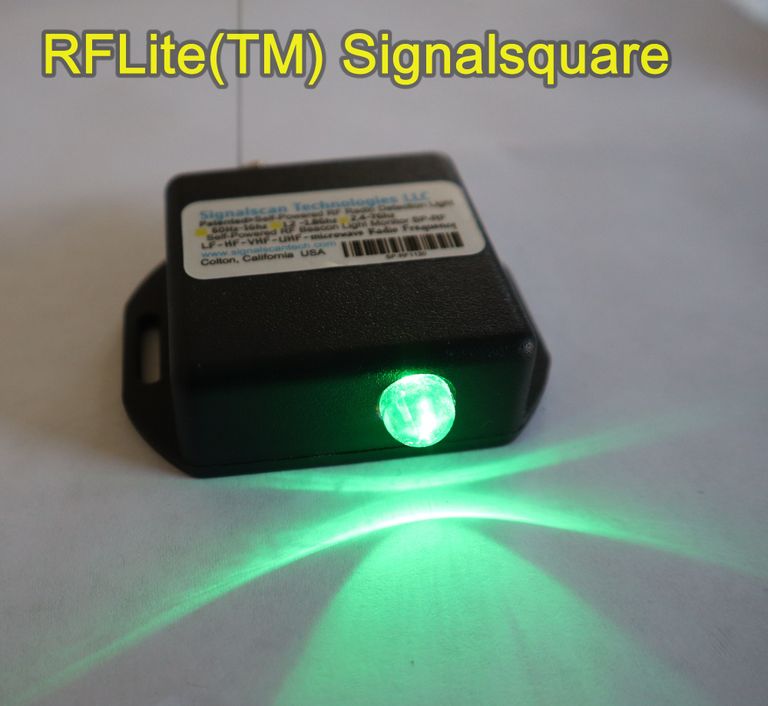

      Signalsquare>   $59.95

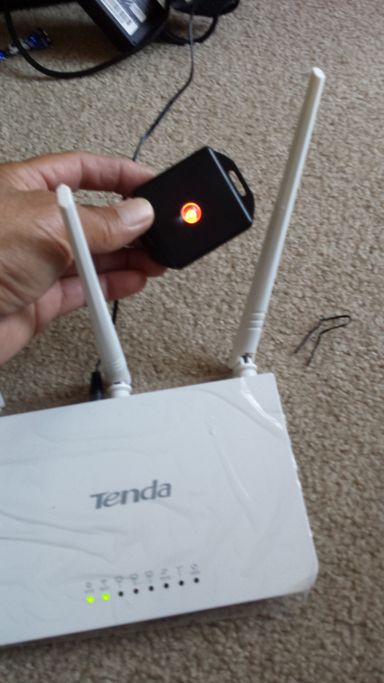

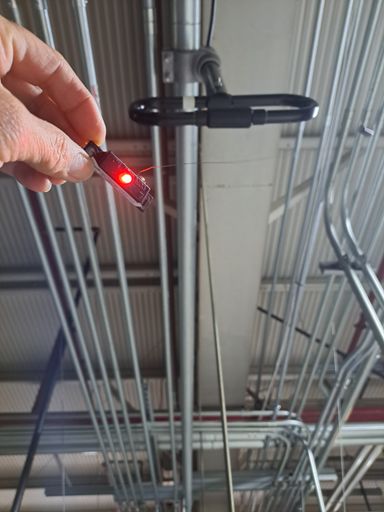

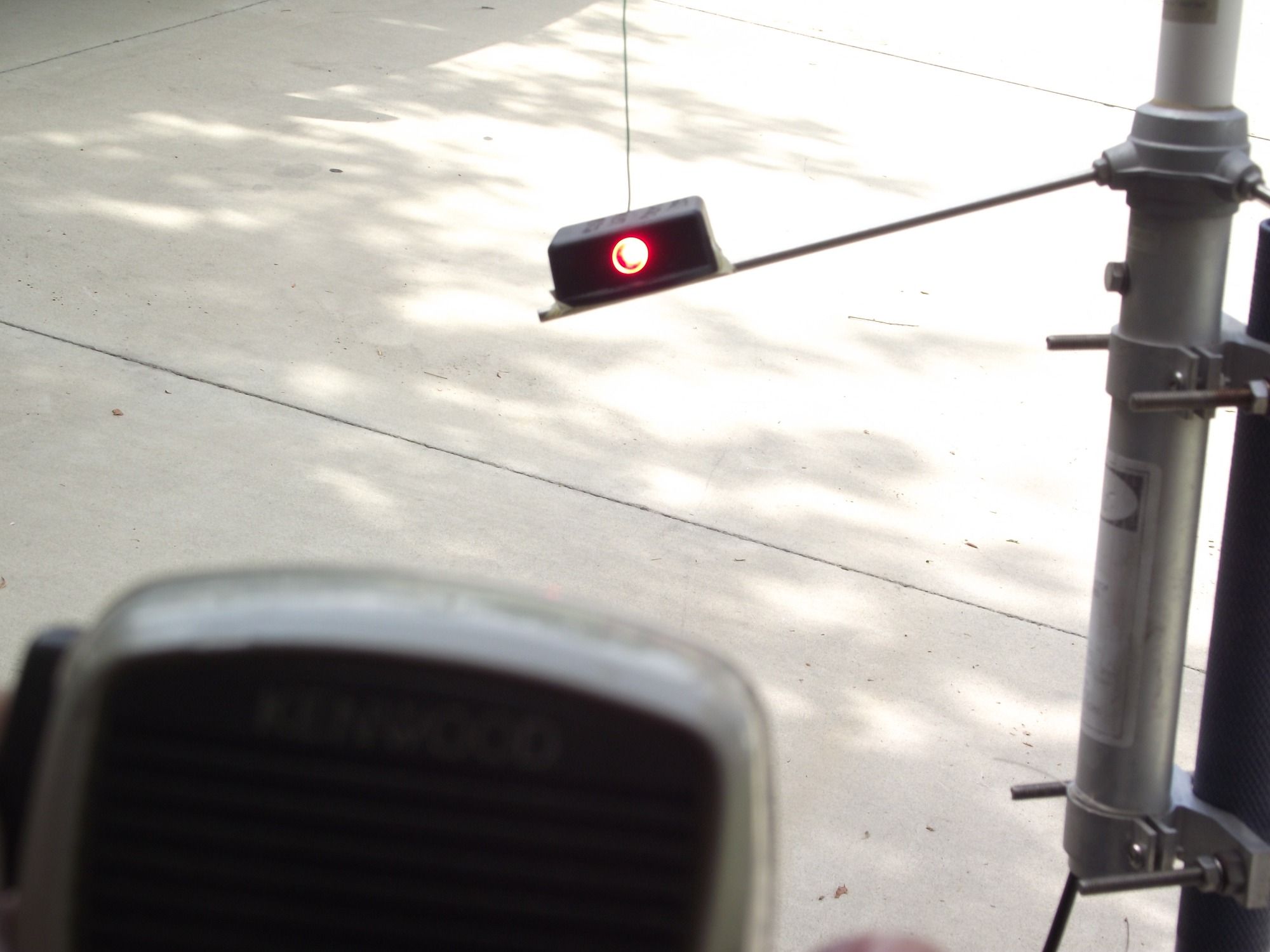

The first representation of our device. Encased in a protective case on ABS plastic that can handle outdoor environments. A waterproof device to detect any RF signal source without a battery. You can attach this to any base station antennas, or simply test any radio handheld or mobile transceiver antenna output or radio antenna port output and uses RF electromagnetic field as a power source to light up an indicating light.  Can also be use as antenna locator device. This device also detects a high voltage AC power line from 15kV and above, also a handy tool for electrician.

Self-Powered RF Detection Light (No Battery Needed)

Product Dimensions

  • Length: 2.5625 in
  • Width: 2 in
  • Height: 0.75 in

Specifications

  • Hz to GHz: 60 Hz to 1.2 GHz
    • For Optional Models:
      • 2.4 to 6 Ghz
  • Min. to Max. RF Powered Detection: Milliwatt to Kilowatts
  • Proximity Detection:
    • Wireless: 0.5 in to 3 ft
    • Capable of in-circuit detection from 20 mW. 30 seconds at 100 W

Warranty

  • 3 years warranty no matter what, except:
    • Intentional breakage and tampering of device.

Signalsquare>   plus
(light & sound monitor) $75.00

The first representation of our device. Encased in a protective case on ABS plastic that can handle outdoor environments. A waterproof device to detect any RF signal source with " Light and Piezo sounder"  in close proximity without a battery. You can attach this to any base station antennas, or simply test any radio handheld or mobile transceiver antenna output or radio antenna port output and uses RF electromagnetic field as a power source to light up an indicating light plus sound with built-in piezo transducer.  Can also be use as antenna locator device. This device also detects a high voltage AC power line from 15kV and above, also a handy tool for electrician.

Self-Powered RF Detection Light (No Battery Needed)

Product Dimensions

  • Length: 2.5625 in
  • Width: 2 in
  • Height: 0.75 in

Specifications

  • Hz to GHz: 60 Hz to 1.2 GHz
  • For Optional Models:
  • 2.4 to 6 Ghz
  • Min. to Max. RF Powered Detection: Milliwatt to Kilowatts
  • Proximity Detection:
  • Wireless: 0.5 in to 3 ft
  • Capable of in-circuit detection from 20 mW. 30 seconds at 100 W

Warranty

  • 3 years warranty no matter what, except:
  • Intentional breakage and tampering of device.

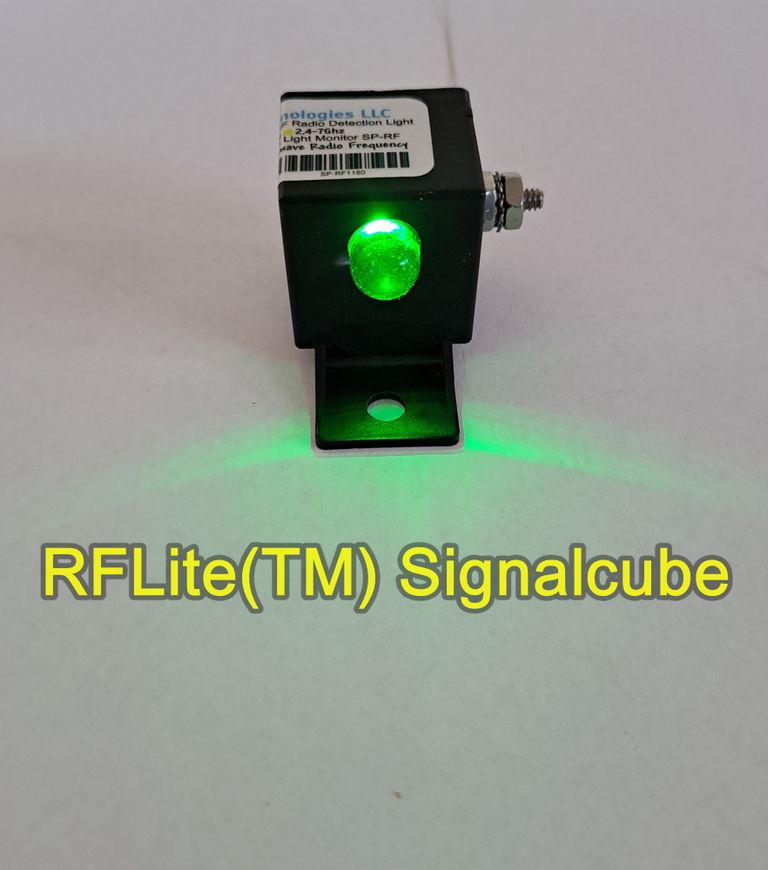

      Signalcube>   $59.95

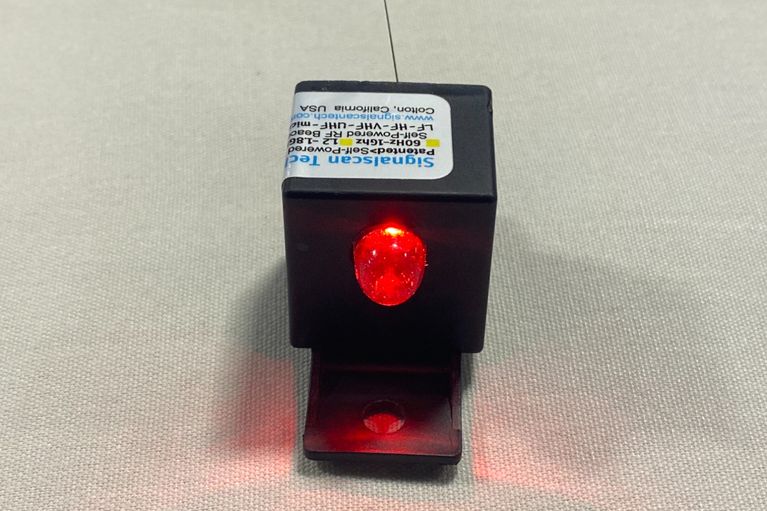

The smaller version of the Signalsquare,  a Signalcube >but functions the same. Encased in a protective case that can handle outdoor environments. A waterproof device to detect any radio RF signal source in close proximity without a battery. You can attach this to any base station antenna, or a simply too to test and locate any RF source of portable radio, mobile or repeater and uses radio RF electromagnetic field as a power source to light up an indicating light. This device also detects a high voltage AC power line from 15kV and above, also a handy tool for electrician.

Self-Powered RF Detection Light (No Battery Needed)

Product Dimensions

  • Length: 1 in
  • Width: 1 in
  • Height: 1 in

Specifications

  • Hz to GHz: 60 Hz to 1.2 GHz
    • For Optional Models:
      • 2.4 to 6 Ghz
  • Min. to Max. RF Powered Detection: Milliwatt to Kilowatts
  • Proximity Detection:
    • Wireless: 0.5 in to 3 ft
    • Capable of in-circuit detection from 20 mW. 30 seconds at 100 W

Warranty

  • 3 years warranty no matter what, except:
    • Intentional breakage and tampering of device.
